Description

Introduction

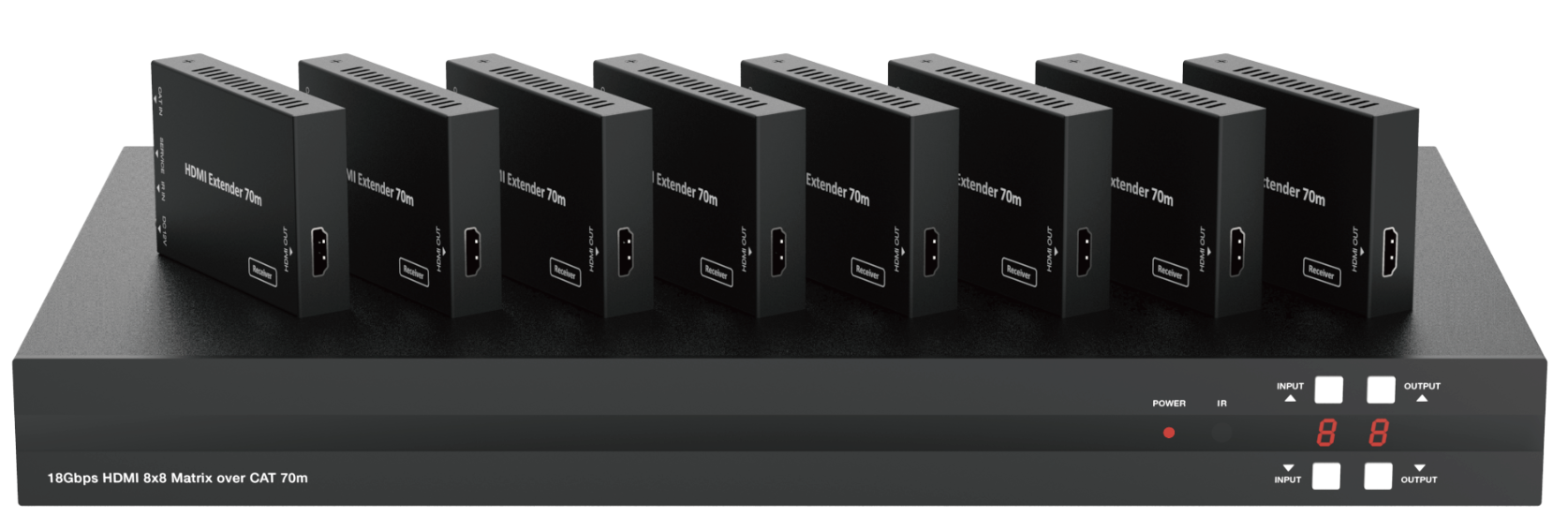

The 18Gbps 8×8 HDMI Matrix can connect 8 HDMI sources to 16 displays. It features

eight HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which

runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD

and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby

TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The Matrix can be used for multi-room

connectivity, and the HDMI signals can be extended up to 230ft/70m via connecting a CAT

Receiver to each of the CAT-Cable outputs. The Matrix supports one-way IR matrix function.

Besides, it can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Features

☆ HDMI 2.0b and HDCP 2.2/1.x compliant

☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports

☆ 8 HDMI inputs, 8 HDMI & CAT mirrored outputs

☆ HDMI ports support 18Gbps lossless compressed video bandwidth

☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported

☆ CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable

☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD

Master Audio)

☆ Advanced EDID management and CEC control are supported

☆ 12V POC on all CAT ports

☆ Support one-way IR matrix function

☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

MDM-HDMI88
