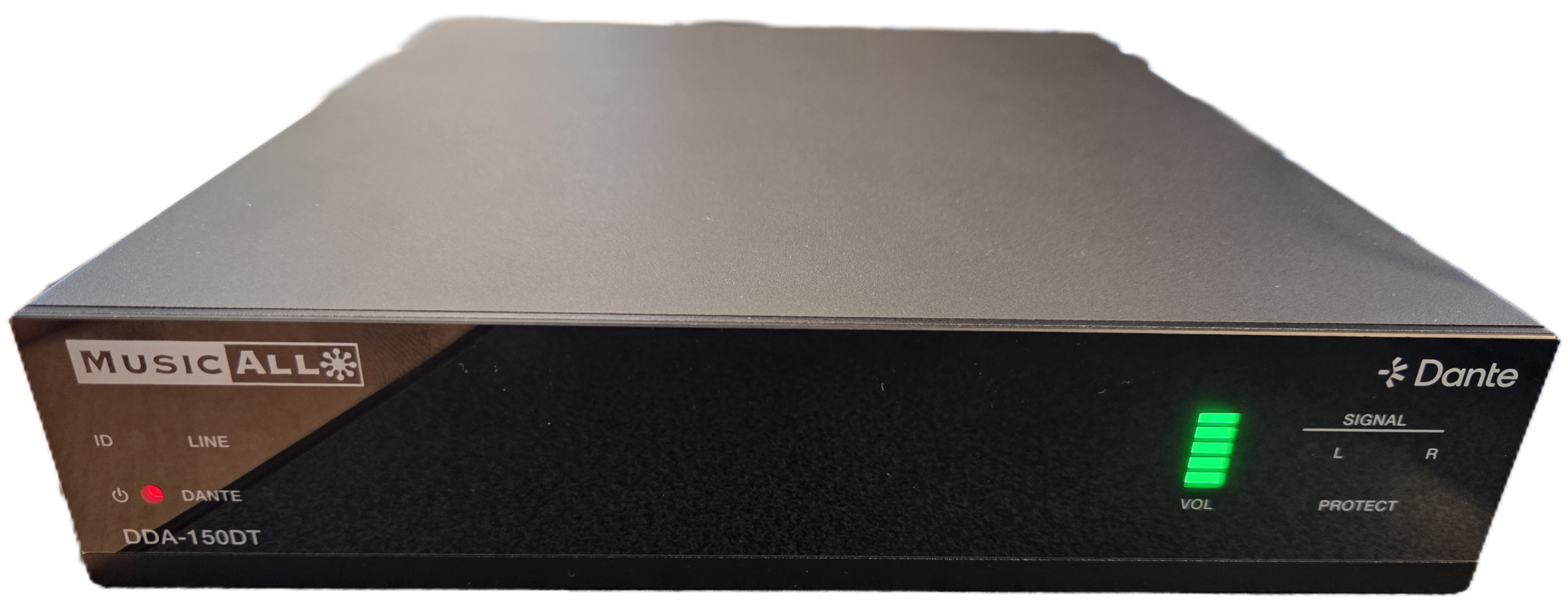

DDA-150DT

Beschrijving

Introduction

This product is designed as a two-channel amplifier using class D amplifier technology. It can

be used for powering low impedance (4Ω/8Ω) stereo systems with a maximum power of 2x

75 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum

output power of 150 Watt. It features Dante® 2CH digital inputs and outputs, and balanced or

unbalanced line level analog inputs and outputs.

This amplifier can be controlled via RS-232, LAN, MMA-CON1 controller and Web GUI. It also features built-in DSP,

auto-standby and maximum durability. It is suitable for a vast range of AV installations.

Features

☆ Dante® 2CH digital audio IN, routable in the software

☆ Dante® 2CH digital audio OUT, routable in the software

☆ Built-in audio DSP processor

☆ Switching between Lo-Z and Hi-Z can be achieved to adapt to various types of speaker

installations.

In Lo-Z output mode, bridge mode 150 Watt or two-channel 2x 75 Watt 4Ω/8Ω can be

selected.

In Hi-Z output mode, constant voltage 70V/100V can be selected.

☆ Independent input gain, output EQ and volume control

☆ 48KHz sampling rate, 24bit independent A/D and D/A converters

☆ 5-12V trigger input

☆ Auto standby

☆ Flexible control via RS-232, LAN and Web GUI

☆ Half rack design/one rack design, brackets included.

Specifications

Input

2x Dante® Network audio input

2x LINE balanced/unbalanced stereo 2Vrms input

Output

2x Dante® Network audio output

1x Constant voltage 70V/100V speaker output

2x LINE balanced/unbalanced stereo output

Input Sensitivity 2Vrms

Output Power DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω/16Ω; 1x 150W@70V/100V

Maximum Voltage Gain 27 – 30dB SE/39 – 42dB BTL

Amplifier Type Class D

Frequency Response 20Hz – 20kHz @ ±1dB

Signal to Noise Ratio 87dB, 20Hz – 10kHz

THD+N THD+N (1KHz@1W) 0.04%

Control RS-232, Web GUI

Audio Formats

LINE IN [Analog audio, Balanced/unbalanced 2CH, Max input level 2Vrms]

LINE OUT [Analog audio, Balanced/unbalanced 2CH, Max output level 2Vrms]

Dante® [Digital audio 2×2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit]

AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5Vrms]

70V/100V AMP OUT [Analog audio, Max output level 70V/100Vrms]

ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

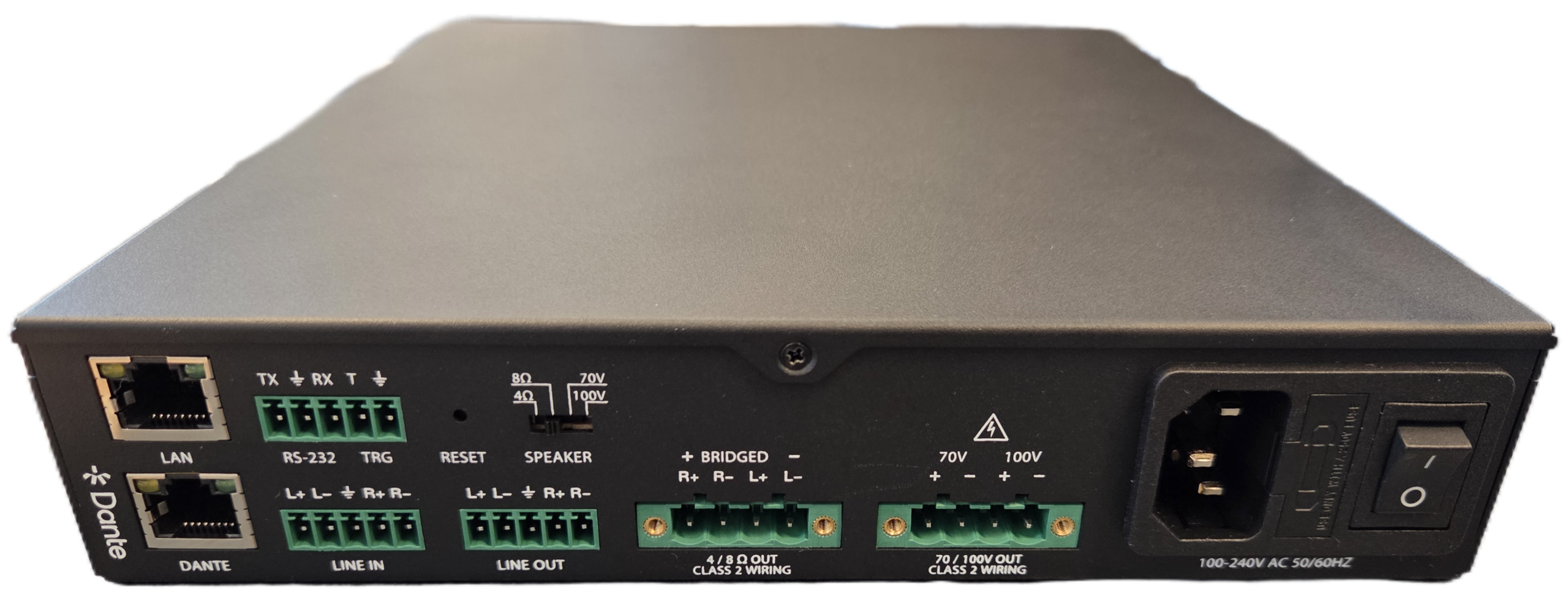

Connections

1x DANTE [RJ45 connector, 2CH Dante® input/output]

1x LINE IN [5pin-3.81mm phoenix connector, balanced/unbalanced 2CH]

1x LINE OUT [5pin-3.81mm phoenix connector, balanced/unbalanced 2CH]

1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4pin-5.08mm locking phoenix, 2CH amplifier output]

1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4pin-5.08mm locking phoenix, constant voltage speaker output]

1x RS-232/TRG [5pin-3.81mm phoenix connector]

[TRG: 5-12V trigger input to turn on/off the amplifier]

1x LAN [RJ45 connector]

Mechanical

Housing Front panel: Aluminum; Rear case: Metal Enclosure

Color Black

Dimensions 240mm [W]×210mm [D]×44mm [H]

Weight 1.88Kg

Power Supply DC Input: AC100 – 240V 50/60Hz
