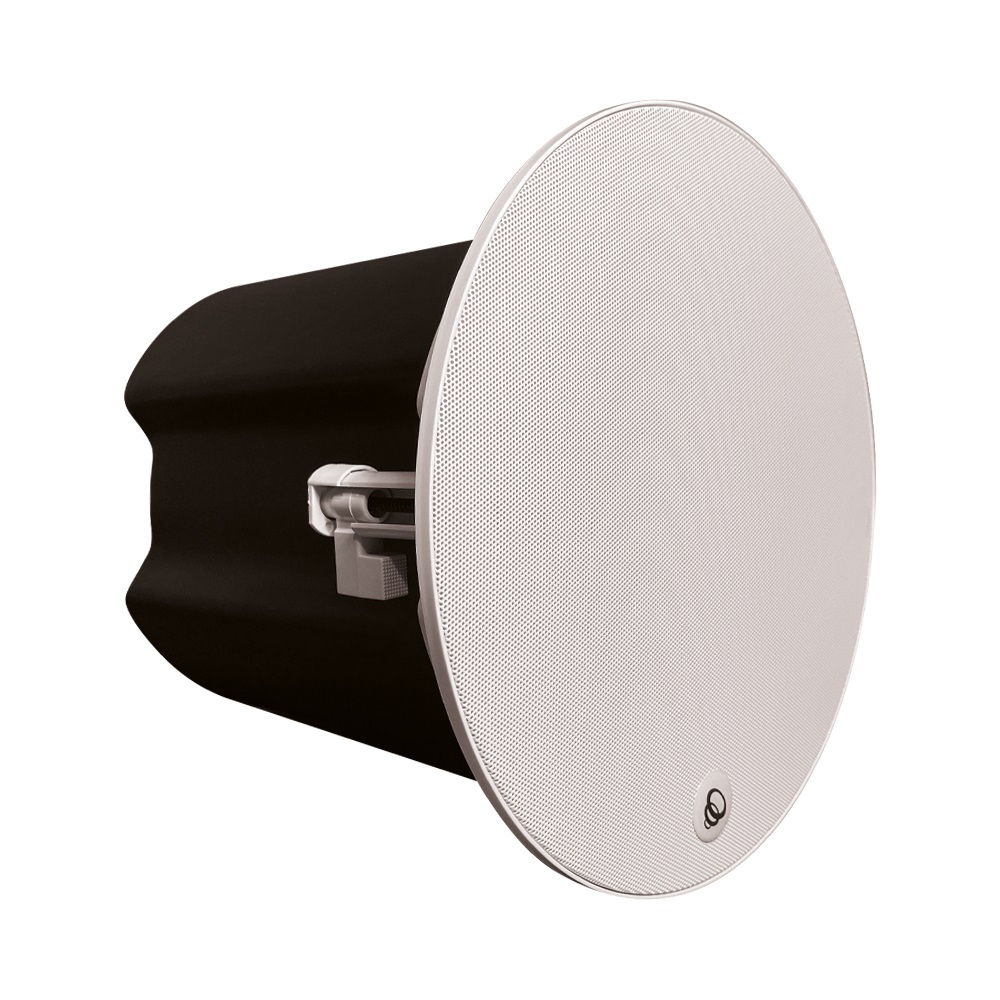

FCS Series offers a compact solution for applications that require placing professional equipment on ceilings with no complications, due to its easy installation.
FCS Series features three different solutions: FCS4T, FCS5T and FCS6T, allowing for a wide range of ceiling applications.
With low frequencies starting from 145 Hz, and RMS Powers from 40 to 80W, FCS Series offers solutions for every need when it comes to applications for retail and shopping centers, as well as public indoor spaces and lobbies.
FCS Series is designed with both installation and performance in mind. Its compact size and light weight, even in the larger version, allow for easy transportation and placing. Materials like iron, and silk or titanium for speaker domes, contribute to a steady performance during long background music cues, as well as good sound quality for PA.
|Tweeter||0.5” (13 mm) Silk soft dome|
|Woofer||4” (100 mm) Graphite Cone, Rubber Surround|
|Frequency Range +/-3 dB||98 Hz – 20 kHz|
|Power Handling RMS||40 W program, 20 W (IEEE 219)|
|Sensitivity (1 W / 1m)||84 dB|
|Coverage||H:80° – V:70°|
|Crossover Frequency||4 kHz|
|Conformity (Input)||100 V (8 Ω)|
|Taps||8 Ω,0, 20 W, 10 W, 5 W, 2.5 W|
|Termination||Standard pressed connector|
|Included Accessories||Cutout template grille|
|Dimensions (H x Diameter)||167.5 x 204.2 mm (6.59” x 8.04”)|
|Cut out diameter||175 mm (6.88”)|
|Material||ABS + iron|
