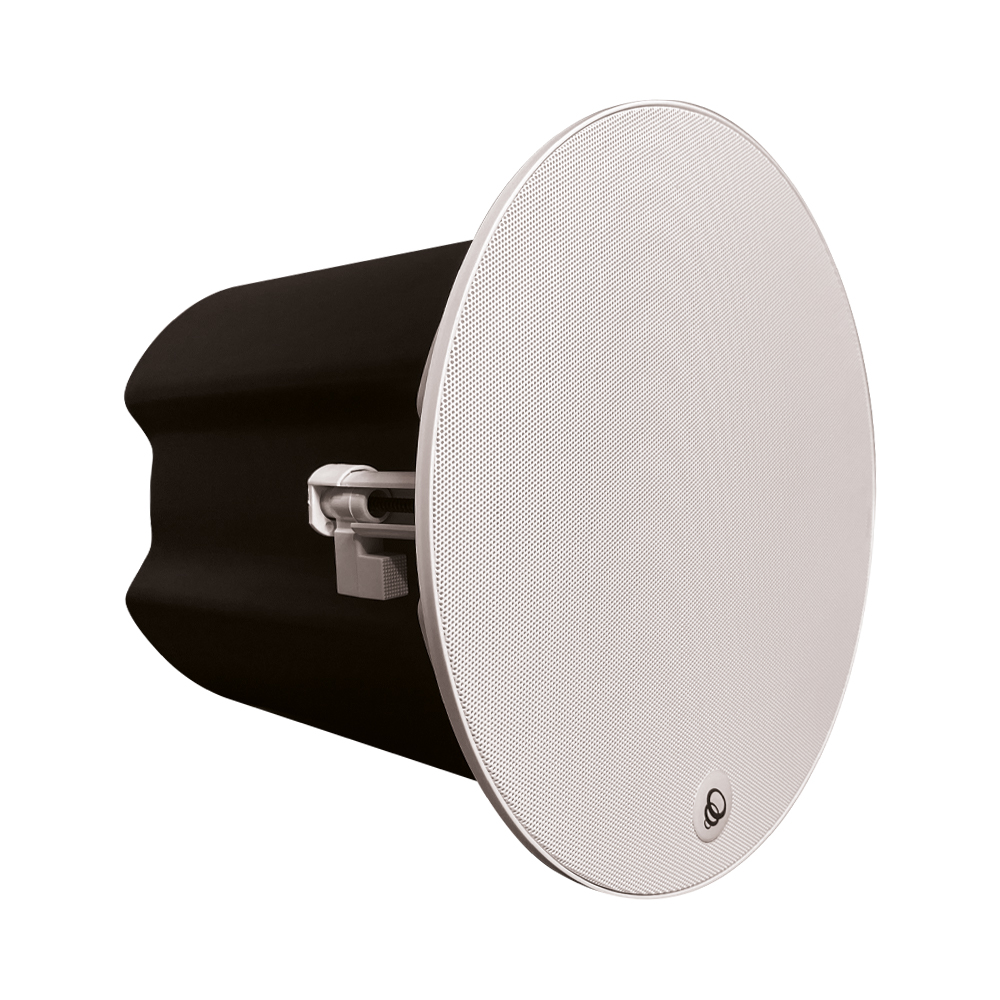

FCS5T

 169,00 Excl. BTW

5″ two-way ceiling speaker 100V/8Ω, 30/60W

Beschrijving

FCS Series

Ceiling Speakers

FCS Series offers a compact solution for applications that require placing professional equipment on ceilings with no complications, due to its easy installation.

FCS Series features three different solutions: FCS4T, FCS5T and FCS6T, allowing for a wide range of ceiling applications.

With low frequencies starting from 145 Hz, and RMS Powers from 40 to 80W, FCS Series offers solutions for every need when it comes to applications for retail and shopping centers, as well as public indoor spaces and lobbies.

FCS Series is designed with both installation and performance in mind. Its compact size and light weight, even in the larger version, allow for easy transportation and placing. Materials like iron, and silk or titanium for speaker domes, contribute to a steady performance during long background music cues, as well as good sound quality for PA.

Tweeter0.75” (20 mm) Titanium dome
Woofer5” (125 mm) Graphite Cone, Rubber Surround
Frequency Range +/-3 dB85 Hz – 20 kHz
Power Handling RMS60 W program, 30 W (IEEE 219)
Sensitivity (1 W / 1m)84 dB
CoverageH:40° – V:30°
Crossover Frequency2.8 kHz
Conformity (Input)100 V (8 Ω)
Taps8 Ω,0, 30 W, 15 W, 7.5 W, 3.25 W
Impedance8 Ω
TerminationStandard pressed connector
Included AccessoriesCutout template grille
AttachmentLow-profile grille
Dimensions (H x Diameter)234.5 x 238.5 mm (9.23” x 9.40”)
Weight3.3 kg
Cut out diameter206 mm (8.11”)
MaterialABS + iron

Extra informatie

Installatie

Inbouw

DATASHEET

IDEA_FCS-Series_User-Manual_BIL_v1.3
