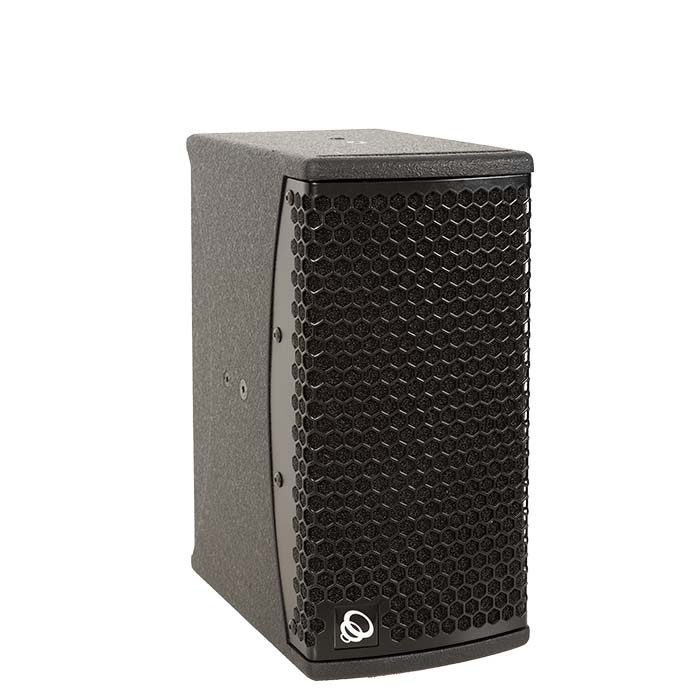

LUA6i

 559,00 Excl. BTW

2-Way Install Loudspeaker 6″, 16Ω, 200W RMS

Categorieën: ,

Beschrijving

LUA6i

2-Way 6-inch Install Loudspeaker

LUA6i is a passive loudspeaker specially indicated for fixed installations and those applications in which acoustical performance and aesthetics are essential.

  • Compact unobtrusive design
  • Premium European high-efficiency custom IDEA Transducers
  • Dedicated wall-mount accessory included
  • 16 Ohm Passive
  • NL-4 connectors
  • Rugged 15 mm birch plywood construction and finish
  • Durable Aquaforce paint, available in standard textured black or white Optional RAL colors on demand
Enclosure designRectangular
HF Transducer1″ Dome Tweeter
LF Transducer1 x 6” High performance woofer
Power Handling (RMS)200 W
Nominal Impedance16 Ohm
SPL (Continuous/Peak)115/121 dB SPL
Frequency Range (-10 dB)80 – 23000 Hz
Frequency Range (-3 dB)100 – 19000 Hz
Coverage70˚ Axisymmetric
Dimensions (WxHxD)170 x 360 x 260 mm (4 x 14.2 x 10.2 in)
Weight9.3 kg (20.5 lb)
Connectors
+/-1
+/-2
2 x Neutrik speakOn NL-4 in parallel
Input
Link
Cabinet Construction15 mm MDF
Grille1.5 mm perforated weatherised steel with protective foam
FinishDurable IDEA proprietary Aquaforce high-resistance paint coating process
Installation4 x M6 inserts
AccesoriesU-bracket horizontal (UB-L6i-H), U-bracket vertical (UB-L6i-V), Wall Mount (WM-L6i)

Extra informatie

Installatie

Opbouw

DATASHEET

QS_LUA6i_EN
