DA-1000B/6
€ 289,00 Excl. BTW
1000 Series diversity UHF PLL beltpack 614-650MHz, Remoset
Beschrijving

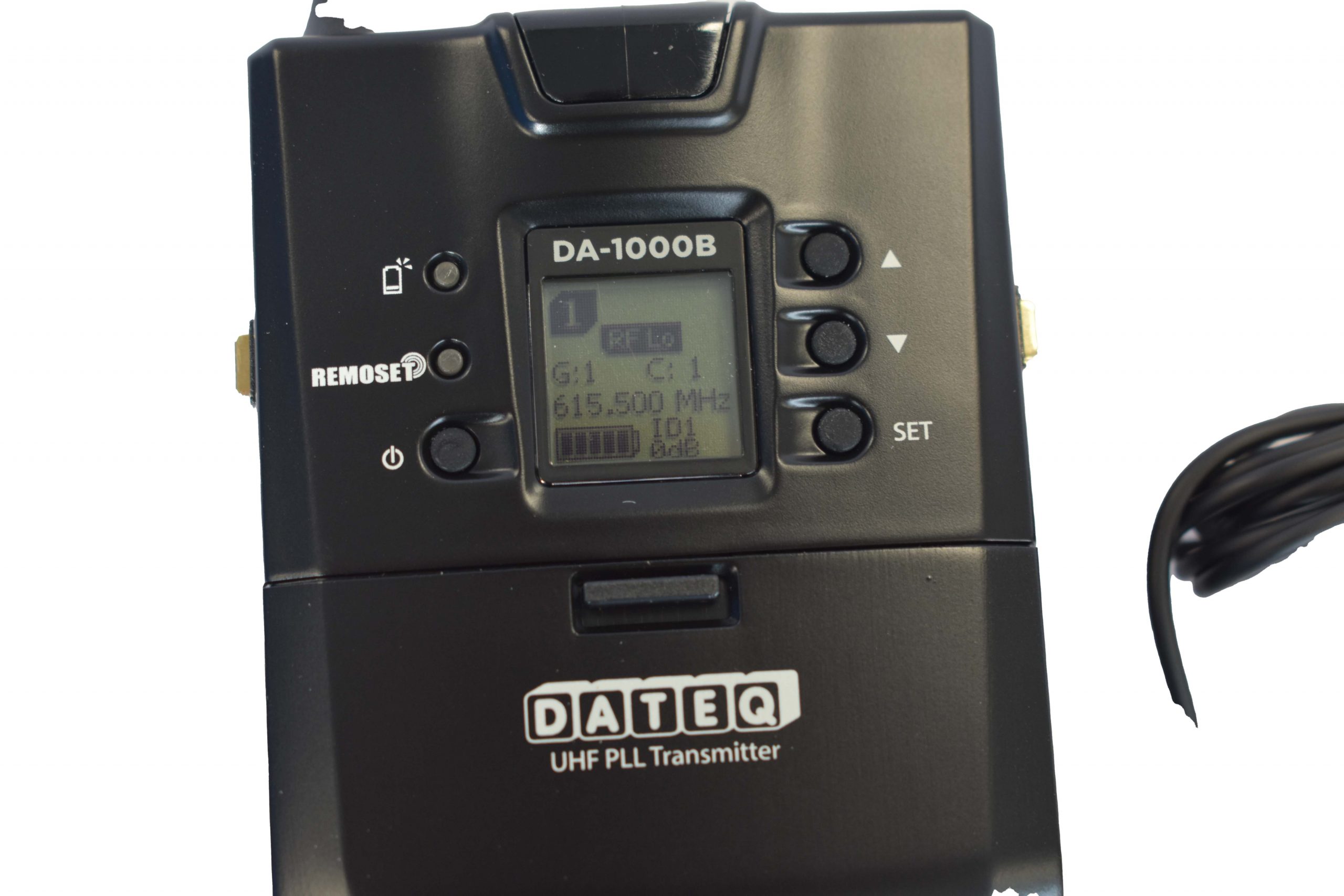

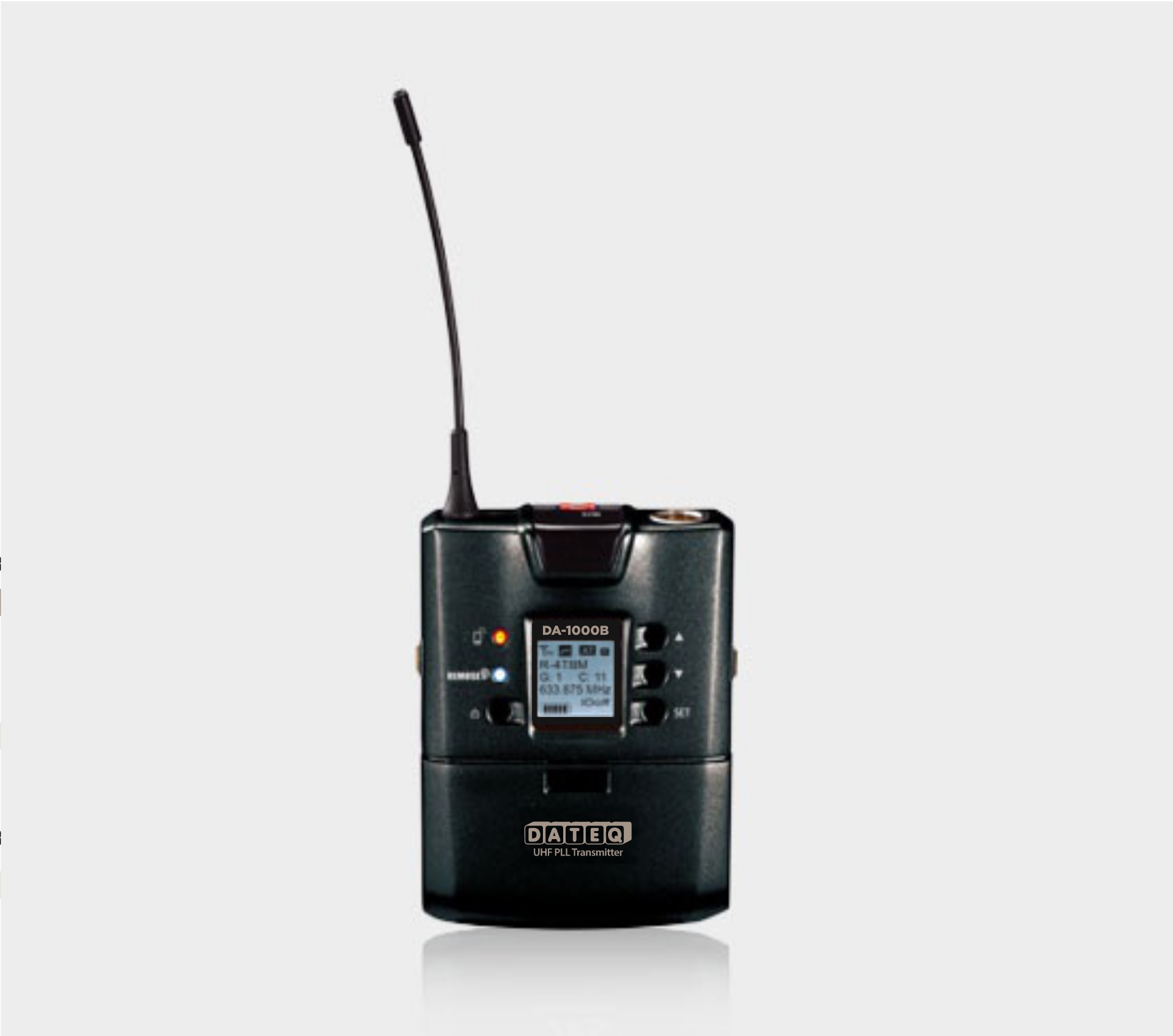

DA-1000B/6
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption

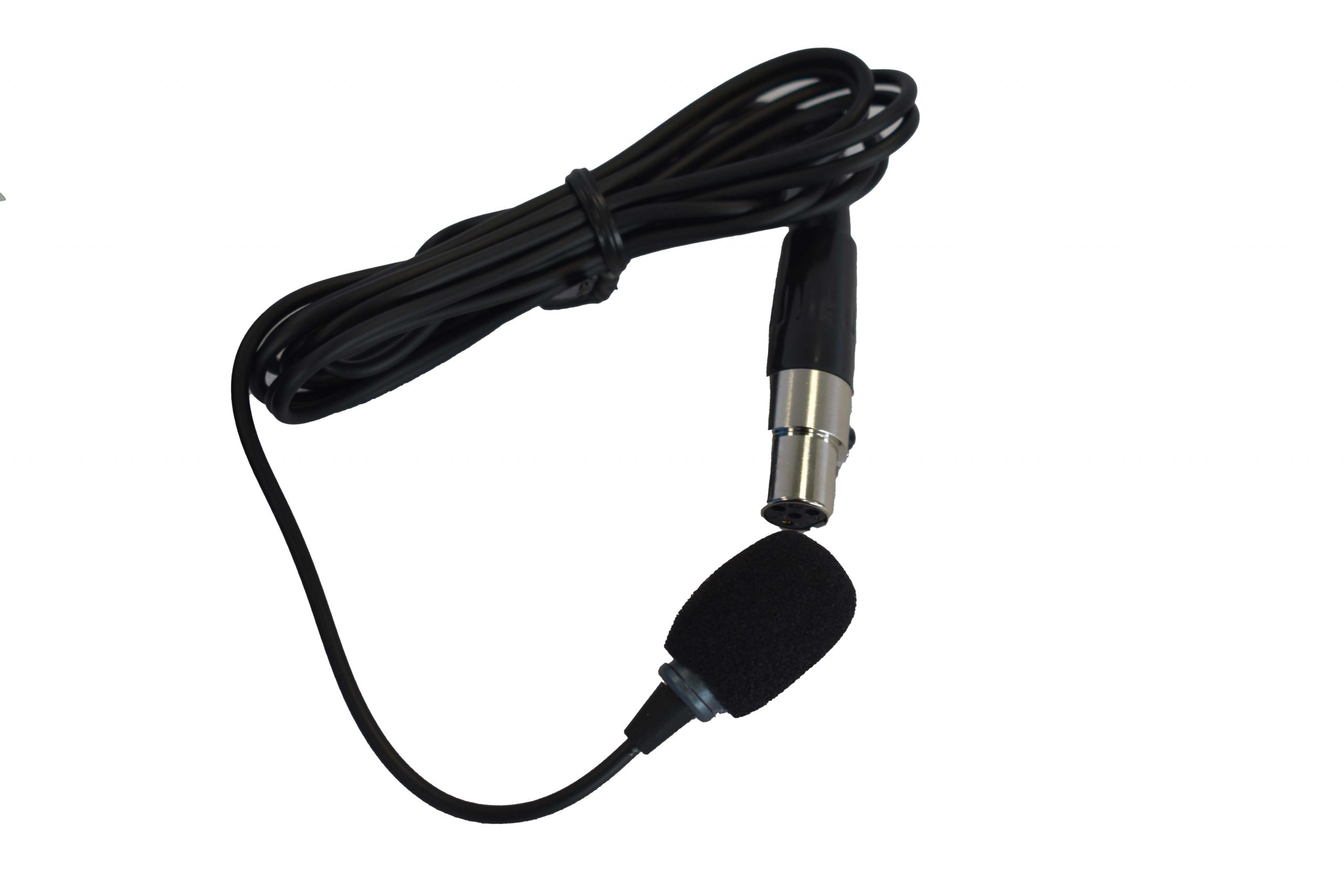

* Together with various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
| DA-1000B/6 |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 614~650 MHz |
| Bandwidth | 108MHz Wideband |
| RF Outputs | Low / High |
| Stability | < ±10KHz |
| Frequency Deviation | ± 48KHz (Peak) |
| Chassis | Aluminium alloy |
| LCD Display | Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust |
| Controls | Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Output Connector | 4P Mini XLR |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 50Hz ~ 18k Hz |
| Battery | UM3, AA x2 |
| Dimensions | 62mm (W) x80.3mm (H) x22.6mm (D) |
| Weight | 93g |
